Athletic Digital Baseball Scoreboard , Baseball Electronic Scoreboard Outdoor Type

Jiaxing Linger Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

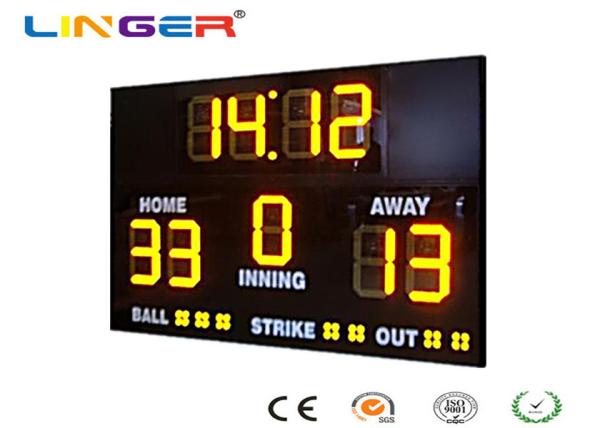

Athletic Digital Baseball Scoreboard , Baseball Electronic Scoreboard Outdoor Type

Brand Name : Linger

Model Number : LG-LBBS-9D400Y

Certification : CE ,RoHS

Place of Origin : Jiaxing, Zhejiang, China (Mainland)

MOQ : 1 Unit

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100Units/ Per Month

Delivery Time : 7 - 10 Days

Packaging Details : 1unit in one Carton / Wooden Case

Digit Color : Amber Color

Controller : PVC Controller Box - Wireless Type

Frame Material : Iron in Black Color

Digit Height : 16'' 400mm Height

Scoreboard Size : 1300mm*1800mm*100mm

UV Protection : Front Face

Input Power : 110V ~ 220V

Usage : Outdoor Type

Contact Now

Athletic Electronic Sport Board for LED Baseball Scoreboard and Outdoor type





PRODUCT INFORMATION
Model No. :  LG-LBBS-9D400Y
Dight Height and Color : 16'' 400mm Height in Single Yellow Color
Display Dimension  : 4.3ft x 5.9ft  ( 1300mm*1800mm*100mm )
Operation Type :  PVC Buttons Type Controller Box / Windows Software (Wireless)
View Distance :  1m ~ 500m
Application :  Baseball Game
Frame Color :  Red / others
Printed Letters Sticker in White Color
Brightness :  > 5000mcd / sqm
Waterproof :  Outdoor Type





Baseball Scoreboard Description



Function : Display Score



Specification​ :

                       1) Use of the environment: Outdoor

                        2) Brightness: High Level Brightness

​                        3) Height of Characte: 16'' 400mm for main scoreboard

                        4) Display Color : Amber Color (Any other kind is Option)

                        5) Frame Color : Black Color (Any other kind is Option)







​Overall Structure :

​                         1) Display usage: Totally 9 pieces digits ,16 inch height characte

                         2) Frame : Iron / Steel

                         3) Faceplate​ : Display window cover glass​ board and UV Protection

                         4) Drainage Outlet at the bottom of the Frame

                         5) Fans install inside of scoreboard



Technical Norms​ :



                         1) Power Supply : 110V ~ 240V

                         2) Operation Circumstance: -30℃ ~ 65℃ ; 0% ~ 95% relative humidity



Operation Type :



                         1) PVC Buttons Controller Box / Windows Software

                         2) Hard - wire / Wireless Type

                         3) Operation Distance : Max 1000Meters.

                         4) Controller box works by 110V ~ 240V Power (Battery is an Option)





Life Time of Leds : 100000 Hours



Installation : Hanging / Mounting / Custoized Design



Delivery Time : 7days ~ 12days



FOB Port : Shanghai



Warranty : 2 Years



Package Dimension : 1370mm x 1870mm x 150mm (Carton)



Screen Dimension : 4.3' x 5.9' x 4''







Scoreboard Function




TIME : 4Digits to display HH : MM / MM : SS



AWAY : 2Digits to display Score from 00 - 99



​HOME : 2Digits to display Score from 00 - 99



INNINGS : 1Digit to display Score from 0 -9


BALL :  3Dots With function for ON / OFF



STICKER : 2Dots With function for ON / OFF



​OUT : 2Dots With function for ON / OFF



Function Option : Brightness Adjust / Clear Score



Any Special Function is Welcome !





Scoreboard Design Details



1. To finish the scoreboard Layout drawing, or can send us the photo of the scoreboard you need to



    produce.



2. On the website we display a lot of Sport Scoreboards for different games.To Select the similar



    scoreboard picture and send us your idea or changes for this one.



3. After we talking about the all design details and changes ,new confirmed scoreboard layout will be send



   to confirm.



4. For the scoreboard size and Color ,the digit height and color ,all are negotiated.



5. To plus or reduce the digit on the scoreboard,make different color in one scoreboard,make different



     color for cabinet , print Logo on the scoreboard ,all requests are available in the layout drawing.




About Sample



 1. Existing samples can be provided but not for free of charge.  2. Customized size and layout design are welcome.
 3. Sample will be finished about one week.
 4. Photos for sample will be sent to confirm befor the shippment.
 5. Good after-sale service - any quality problem , we will do our best to help solve the problem.

6. Large size sample will shipped by air or sea . Sample with small size and light will send by express.





Advantage



1. We manufactured Led Product over 10 Years.Rich experience with excellent staff, first-class production



environment ,rigorous and efficient enterprise management system.​



2. Customized Design Product is welcome.And MOQ can be 1 Unit.We will provide the competition price



for Various Led Products.



3. The company has a variety of test equipment to control product quality like “Light Source Analysis



System”, “High – Low Temp & Variation Chamber”, “Transportation Vibration Testing Machine”, “Splash



Water Test Equipment” .



4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .



5. Products all certificated, all our products have passed all test, certification can be provided if you need.
