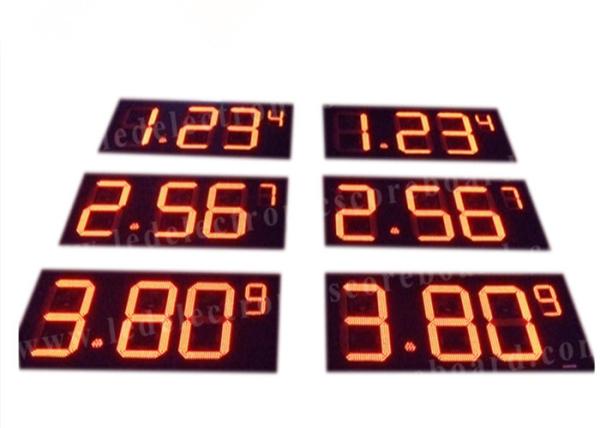

Outdoor Waterproof 12'' Red LED Gas Price Sign with High Brightness
| PRODUCT PARAMETER |
| Format : | 8.88 with small 8 | Color : | Red |
| Display Size : | 580mm x 1500mm | Thickness : | 100mm |
| Digit Size : | 16'' 400mm , 8'' 200mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame ,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box / Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v ~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 650mm x 1570mm x 170mm ( Carton )
Other Standard Dimensions Option
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 720mm x 1470mm x 170mm | 410mm x 820mm x 160mm |
| 12'' 300mm | 400mm x 1000mm x 100mm | 460mm x 1070mm x 160mm |
| 16'' 400mm | 580mm x 1500mm x 100mm | 650mm x 1570mm x 170mm |
| 20'' 500mm | 650mm x 1400mm x 100mm | 720mm x 1470mm x 170mm |
| 24'' 600mm | 700mm x 1650mm x 100mm | 770mm x 1720mm x 170mm |
| 30'' 750mm | 850mm x 2000mm x 100mm | 920mm x 2070mm x 170mm |
About Sample
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small size and light will send by express.
Cautions when using Scoreboard
1. Confirm the Scoreboard Input Power is 110V or 220V .110V input power are unable to use by 220V
power socket.
2. Controller box is not waterproof, please avoid to touch the water.
3. Don’t change any electronic part if there is no any professional technician.
4. Not for Children under 12Years.
5. Stored in a dry environment, avoid direct sunlight.
6. Avoid heavy objects hit the front galss board.
