IP65 Level Digital Cricket Scoreboard , Multi Sport Scoreboard 7 Segment Display

IP65 Waterproof Level Electronic Score board for Cricket Sport and outdoor use

Function : Display Score

Specification​ :

                     1) Use of the environment: Outdoor

                     2) Brightness: High Level Brightness

​                     3) Height of Characte:  12'' 300mm for Main Scoreboard / 6'' 150mm for Mini Scoreboard

                     4) Display Color :  Amber Color (Any other kind is Option)

                     5) Frame Color : Black Color (Any other kind is Option)

​Overall Structure :

​                     1) Display usage: Totally 19 pieces digits ,12 inch height character

                                                  Totally 15 pieces digits ,6 inch height character

                     2) Frame : Iron / Steel

                     3) Faceplate​ : Display window cover glass​ board and UV Protection

                     4) Drainage Outlet at the bottom of the Frame

                     5) Fans install inside of scoreboard

Technical Norms​ :

                     1) Power Supply : 110V ~ 240V

                     2) Operation Circumstance:  -30℃ ~ 65℃ ; 0% ~ 95% relative humidity

Operation Type :

                      1) PVC Buttons Controller Box / Windows Software

                      2) Hard - wire / Wireless Type

                      3) Operation Distance : Max 1000Meters.

                      4) Controller box works by 110V ~ 240V Power (Battery is an Option)

                      5) Main Scoreboard with Mini Scoreboard work for same Controller

Life Time of Leds : 100000 Hours

Installation : Hanging / Mounting / Custoized Design

Delivery Time :  7days ~ 12days

Warranty : 2 Years

Package Dimension : 1570mm x  2170mm x 150mm  (Carton)

                                   570mm x 1070mm x 100mm (Carton)

Screen Dimension :  5'  x  6.9'  x  4''   / Mini :  1.6' * 3.3' * 4''

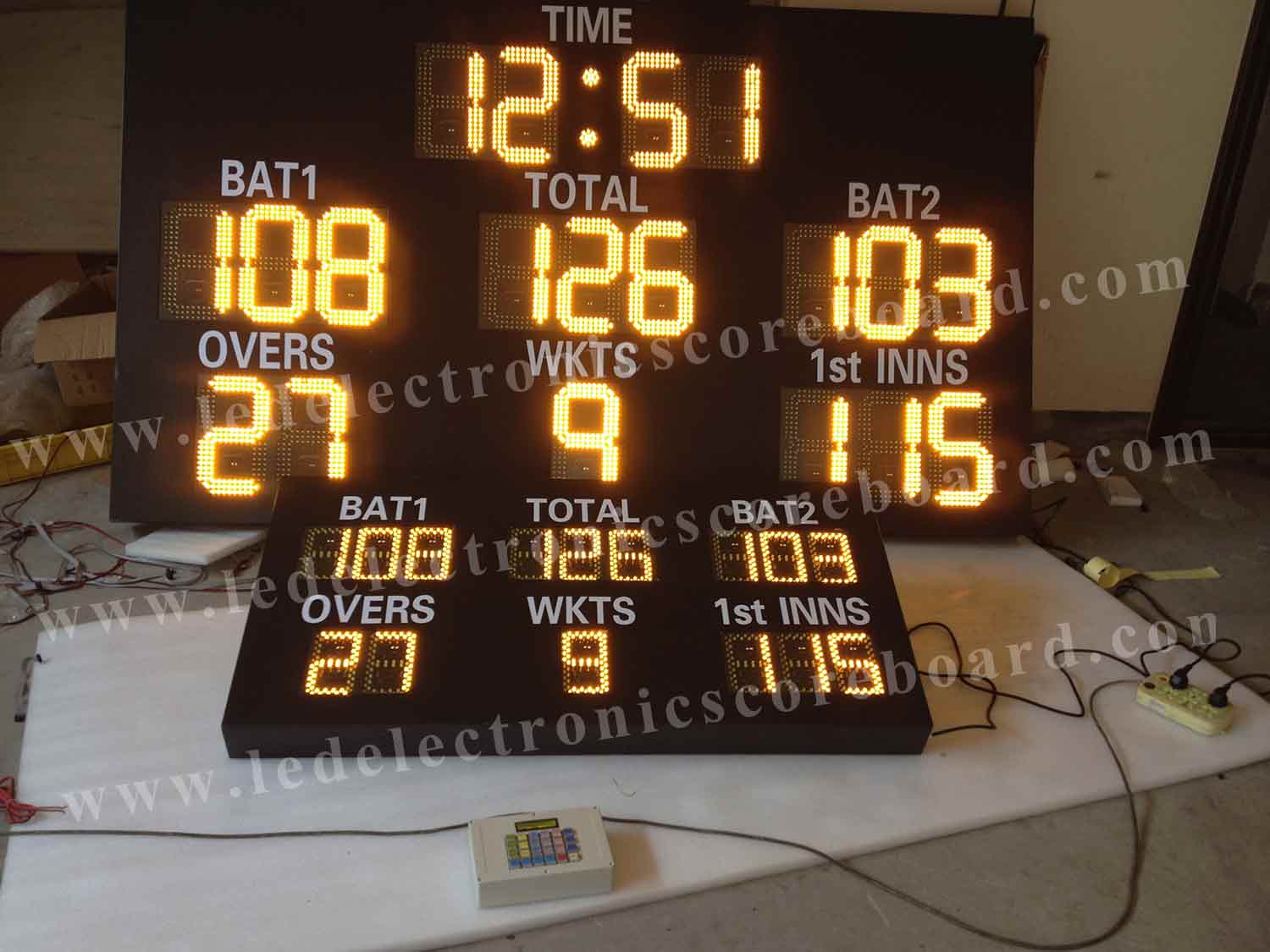

Large Scoreboard and Mini Scoreboard work with the same controller .And Mini scoreboard information

will display at the same time with Large Scoreboard together . So there is no any buttons on Controller for

Mini Scoreboard. It is copy scoreboard to display directly .

TIME : 4Digits to display HH : MM for  Day time Clock /  12Hours Mode or 24Hours Mode

TOTAL  :  3digits to display number from 000 - 999 / Buttons for TOTAL + 1 + 5 - 1

BAT1 :　3digits to display number from 000 - 999 / Buttons for BAT 1   = + 1  - 1

BAT2 : 3digits to display number from 000 - 999 / Buttons for BAT 2  = + 1  - 1

OVERS :  2digits to display number from 00 - 99 / Buttons for OVERS + 1 - 1

WKTS :  1digit to display number from 0 - 9 / Buttons for WKTS  + 1  - 1

1st INNS :  3digits to display number from 000 - 999 / Buttons for 1st INNS  + 1 + 5 - 1

Sticker in white Color on the Scoreboard can be any Letters.

Function Option : Brightness Adjust / Clear Score

Any Special Function is Welcome !
