Red Green Colors for Digits and White Color for Team Name Electronic Paintball Scoreboard
| PRODUCT INFORMATION |
| Model No. : | LG-EPS-LV Tournament -1 |
| Dight Height and Color : | 8'' 200mm Height in Red and Yellow and Green Color |
| Display Dimension : | 3.3 ft x 7.2 ft x 4inch ( 1000mm x 2200mm x 100mm ) |
| Team Name : | P12mm Module ,192mm x 960mm x 2pcs in White Color |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 350m |
| Application : | Paintball Sport |
| Frame Color : | Silver Color / other Colors |
| Printed Letters | Sticker in Black Color for Any letters |
| Weight : | 60kgs |
| Waterproof : | Outdoor Type |

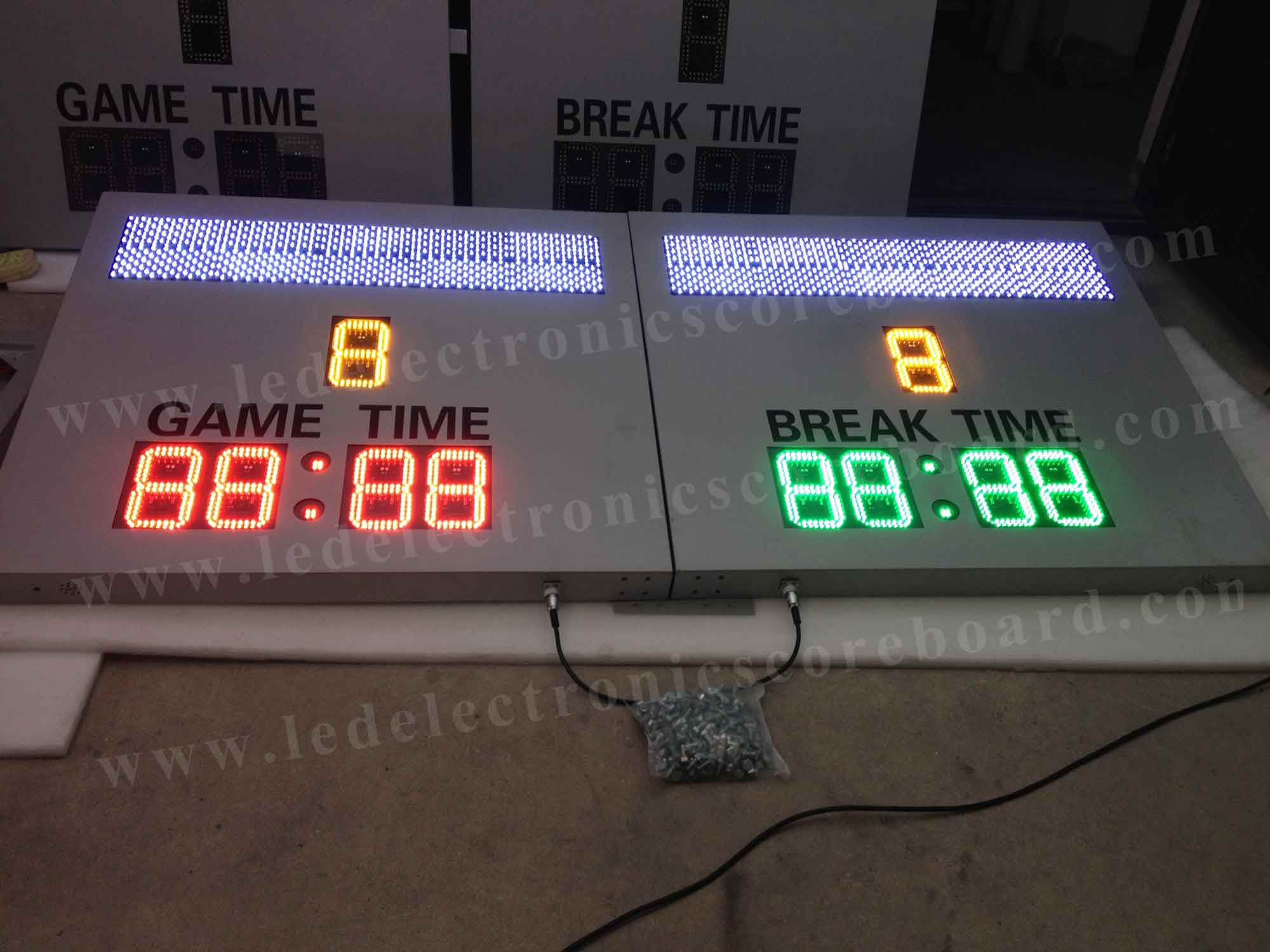

Paintball Scoreboard Descripition
Function : Used for Paintball Sport and display GAME TIME,TIME OUT, 2 Teams SCORE
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 8'' 200mm
4) Display Led Color : Red / Green / Yellow (Any other kind is Option)
5) Frame Color : Silver Color (Any other kind is Option)
Overall Structure :
1) Display usage:
10 Pieces digits , 8 inch character in 3 Colors for Main Scoreboard
2 x 5 - P12mm Modules for one Team Name in White Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1070mm x 2270mm x 160mm (Carton / Wooden Case )
Screen Dimension : 3.3 ' x 7.2 ' x 4''
Paintball Function Descripition
Paintball Scoreboard :
GAME TIME : Minutes / Seconds - 4 Digits can be set to count down from any time up to 99 mins:59 Sec
TIME OUT : Minutes / Seconds - 4 Digits to display
SCORE : Each Team with 1 Digit to display 0 - 9
Team Name : Enter Letters A - Z Use Controller Buttons . Each Name for 1 - 10 Letters
Siren : Internal siren with external siren ,When time is reach to 00 :00 , it will sound for 5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
FAQ
Are you a manufacture?
A : Yes, we are a manufacture with rich experience.
Can I visit your factory ?
A : Welcome ! The nearest air port is Shanghai Pudong International Airport.
How does your factory do Quality Control?
A : Quality is 1st priority. We always attach great importance to quality controlling from
raw material suppliers. We have professional QC team to inspect the products.
Can you add my own LOGO on the product?
A : Yes, customized logo are welcome. OEM and ODM is OK for us.
Can we use our own shipping agent?
A : Yes, you can. We had cooperated with many forwarders. If you need ,we can
recommend some forwarders to you and you can compare the price and services.
Trade Terms
1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and samples.
2. What is MOQ?
MOQ can be 1unit.
3. How about the payment terms?
T/T ,Western Union,Paypal in advance .
4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.
5. What is the warranty?
It is 2 years.
6. What about the price level?
As a professional manufacturer who have been Specializing in the production of led scoreboard,led gas
price sign,led message sign,led disply for more than 15years, we are sure that our prices have a great
competitive advantage over the products at the same level.
Usual Questions
Q1: What should I do if my Scoreboard is not working properly?
Check the Input Power is with right Volatge. Some countries use 110V and Some Countried use 220V.
If the controller box is without Battery. That must be a power cable to connect to 110V / 220V plug.
Any other problem can contact with us and take photos for us to check .
Q2: What is the correct way to store the scoreboard ?
1. Keep out of the reach of children under 8 years.
2. Do not store in dampness and high temperature places.
3. Avoid direct sunlight.
Q3 : What about the maintaince for the scoreboard ?
2 Years Warranty .
Under the condition of not artificial damage, we will send you the new parts to replace.
