FEATURE
Linger Devote to Design the Different customized 7 Segments Dight, any kind of digit height and digit color is accept to Design and Make.
Led Type is DIP and Without Dazzling
The brightness is enough for outside in day and night.
Easy to Install with Screws Directly on Different Material of Panel.
Delivery Time can be 72Hours after payment.
PARAMETER

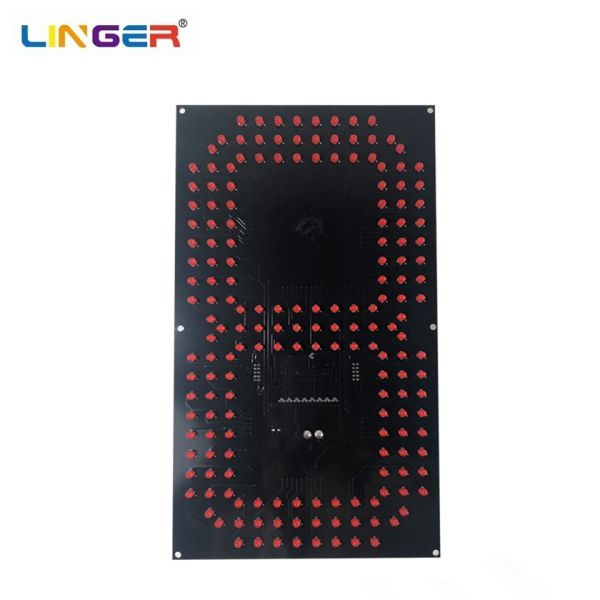

| Dight Model NO. | D300R |
| Digit Height | 12'' 300mm Height |
| Digit Board Size | 177.5mm W * 304.5mm H * 7mm T |
| Led Quantity | 182PCS |
| Led Line | 3 |
| Digit Color | Single Red |
| Digit Circuit Board | FR-4 T130 PCB Board |
| PCB Board Thickness | 1.6mm |
| Diode Type | Mist Led Diodes and Without Dazzling |
| Diode Chip | Cree / Epistar / AXT |
| Led Diode Diameter | φ5mm |
| Brightness | 1000 ~ 1500 / Per Led |
| Max Viewing Angle | 135° |
| Minimum Viewing Angle | 45° |
| Communication Connector | 10Pin Flat Grey Cable |
| LED Wave Length | 620nm ~ 625nm |
| Led Forward Voltage | 2.0V - 2.4V |
| Led Peak Forward Current | 100mA |
| Operating Voltage | DC5V |
| Operating Current | Max 1.82A |
| Power Consumption | Max 9W |
| Luninous Intenisty | 6500cd/m2 |
| Led Operating Temperature (℃) | -20 ~ 65 |
| Led Storage Temperature (℃) | -40 ~ 100 |
| Led Operating Humidity | 5% ~ 95% |
| Digit Weight | 200g |
| Led Life | 100000 Hours |
| Installation | 6 Screws |
ADVANTAGE
1. HORN SOCKET : The Simple Horn Socket Can Lock the Signal Cable Head to Prevent it from Falling off During Shock.
2. LARGE VALUE CAPACITOR : It is Avaliable for Rectification Filtering.
3. LARGE VALUE CHIPS : Improve the Signal and Make the Signal Immune to External Interference. With Separate Control Function.
4. SMD RESISTOR: The Chip Resistor will Protect the Led Current to Extend the Lamp Life.
5. TRANSISTOR: The Transistor Can Guarantee High-Current DriveR Without any Problems.
ABOUT SAMPLE
Digit Sample Can be Free But need to pay the Freight.
Customized size and layout design are welcome.
Sample will be finished about one week.
Photos for sample will be sent to confirm befor the shippment.
Good after-sale service and any quality problem with our product, we will do our best to help solve the problem.
New Digit Design Cost will return when you make Real Order.
PAYMENT
1. Bank Wire Transfer ( T.T.)
2. Cash
3. PayPal (Credit Card)
4. Alibaba Trade Assurance
5. Alipay
6. Wechat
