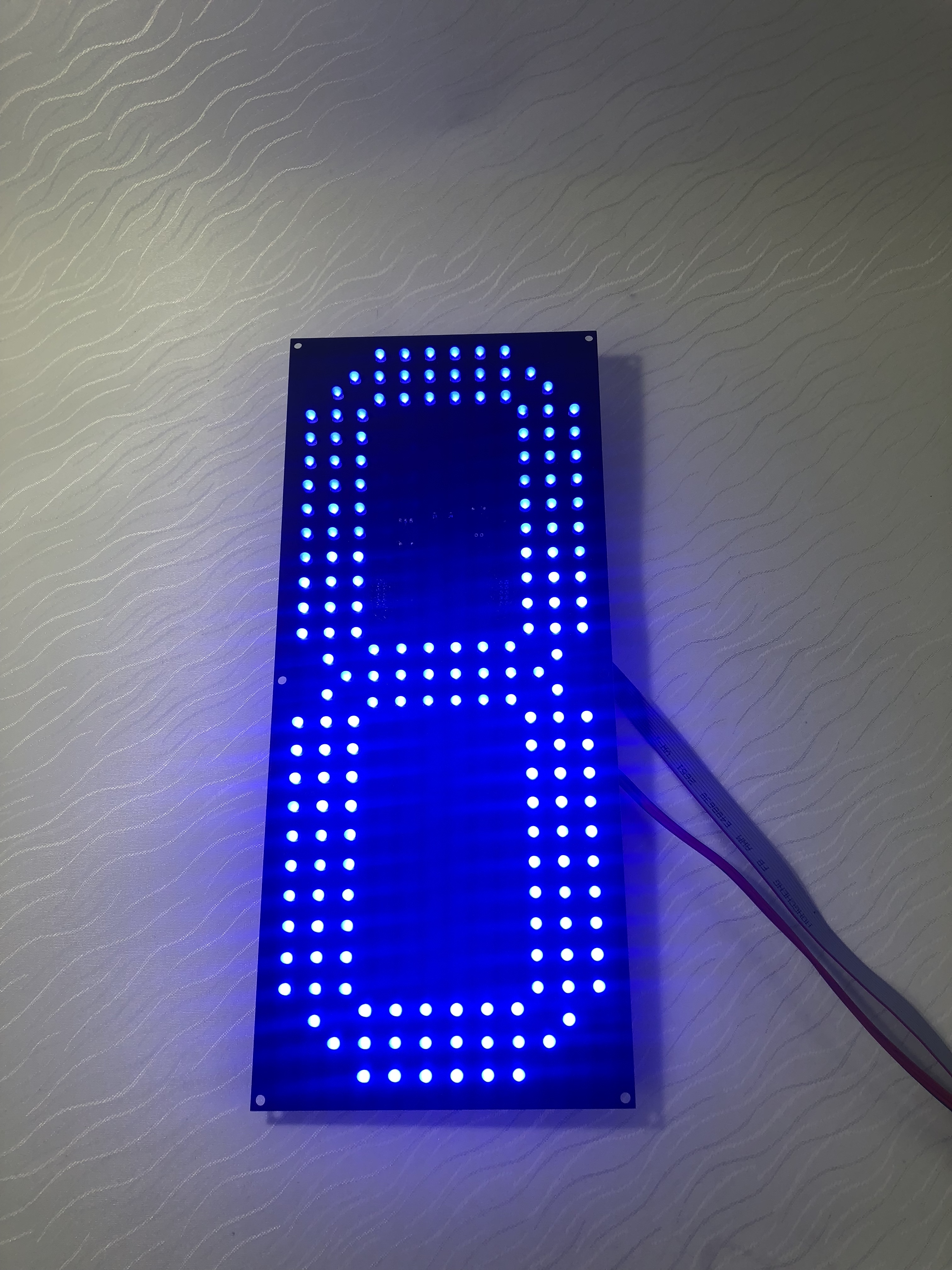

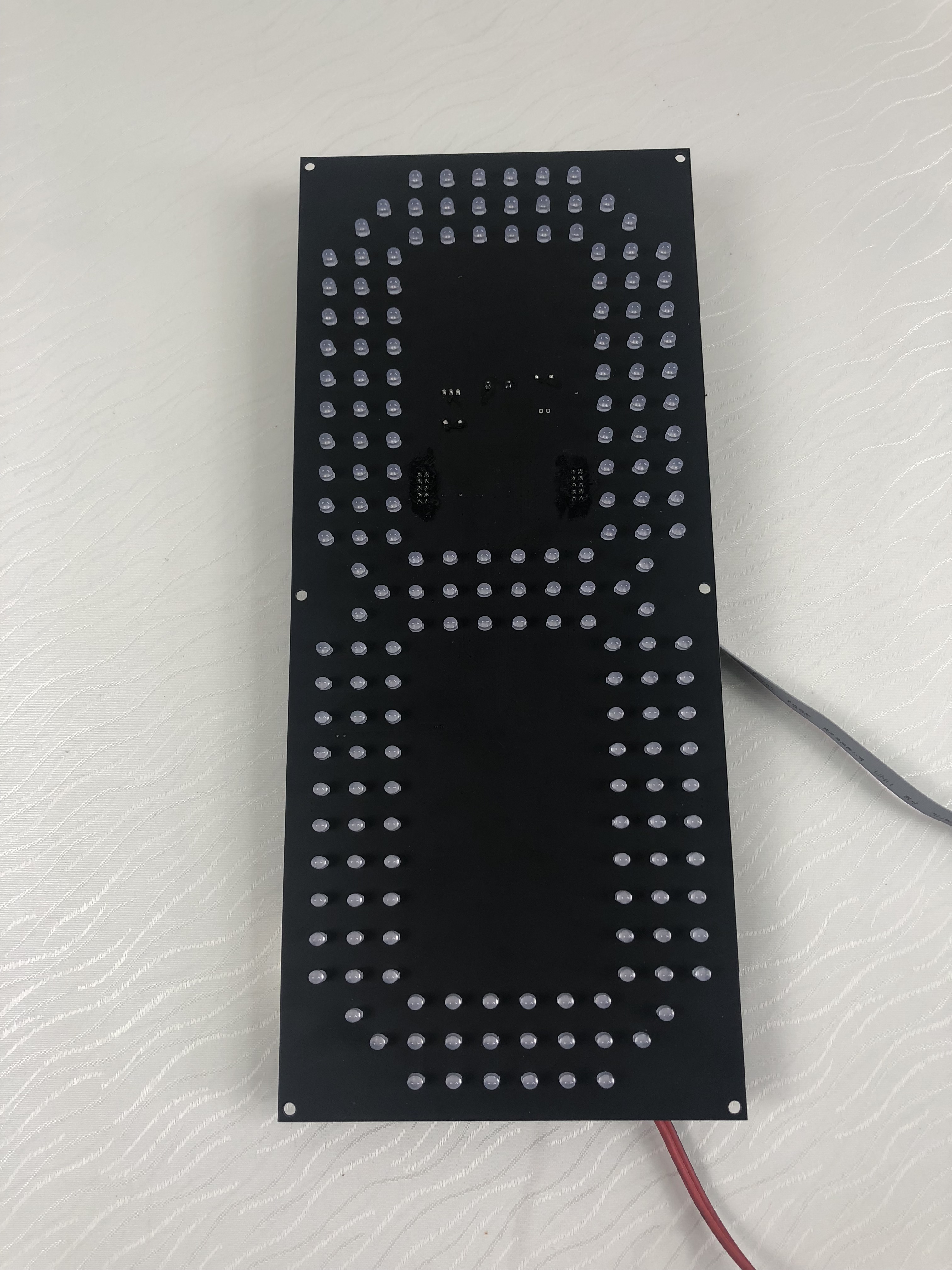

13inch LED Digital Board with 7 Segments Components For Clock to Build
PARAMETER
| Dight Model NO. | D330B |
| Digit Height | 13'' 330mm Height |
| Digit Board Size | 152mm W * 350mm H * 7mm T |
| Led Quantity | 188PCS |
| Led Line | 3 |
| Digit Color | Single Blue |
| Digit Circuit Board | FR-4 T130 PCB Board |
| PCB Board Thickness | 1.6mm |
| Diode Type | Mist Led Diodes and Without Dazzling |
| Diode Chip | Cree / Epistar / AXT |
| Led Diode Diameter | φ5mm |
| Brightness | 1000 ~ 1500 / Per Led |
| Max Viewing Angle | 135° |
| Minimum Viewing Angle | 45° |
| Communication Connector | 10Pin Flat Grey Cable |
| LED Wave Length | 620nm ~ 625nm |
| Led Forward Voltage | 2.0V - 2.4V |
| Led Peak Forward Current | 100mA |
| Operating Voltage | DC5V |
| Operating Current | Max 0.8A |
| Power Consumption | Max 4W |
| Luninous Intenisty | 4500cd/m2 |
| Led Operating Temperature (℃) | -20 ~ 65 |
| Led Storage Temperature (℃) | -40 ~ 100 |
| Led Operating Humidity | 5% ~ 95% |
| Digit Weight | 200g |
| Led Life | 100000 Hours |
| Installation | 6 Screws |
ADVANTAGE
1. HORN SOCKET : The Simple Horn Socket Can Lock the Signal Cable Head to Prevent it from Falling off During Shock.
2. LARGE VALUE CAPACITOR : It is Avaliable for Rectification Filtering.
3. LARGE VALUE CHIPS : Improve the Signal and Make the Signal Immune to External Interference. With Separate Control Function.
4. SMD RESISTOR: The Chip Resistor will Protect the Led Current to Extend the Lamp Life.
5. TRANSISTOR: The Transistor Can Guarantee High-Current DriveR Without any Problems.
PACKAGE & DELIVERY
Packaging Details :
- Air and Express Shipment Packaging : Film+1-3 cm Foam + Paper cardboard
- Sea Shipment Packaging : Wood Case
- OEM Packaging : Customized . Warmly welcome to contact us to talk more detail.
Delivery Details :
- Order Quantity < 500 : 7days ~ 8days.
- Order Quantity < 1000 : 10days ~ 15days.
- Order Quantity > 1000 : 15days ~ 20days.
- Sea Shipment need 25days to arrive.
- Air and Express Shipment need 3-5days to arrive.
FAQ
1.Are you a manufacture?
A : Yes, we are a manufacture with rich experience.
2. Can I visit your factory ?
A : Welcome ! The nearest air port is Shanghai Pudong International Airport.
3. How does your factory do Quality Control?
A : Quality is 1st priority. We always attach great importance to quality controlling from
raw material suppliers. We have professional QC team to inspect the products.
4. Can you add my own LOGO on the product?
A : Yes, customized logo are welcome. OEM and ODM is OK for us.
5.Can we use our own shipping agent?
A : Yes, you can. We had cooperated with many forwarders.
