Easy Operation LED Cricket Scoreboard by Wireless Controller Buttons Box
| PRODUCT INFORMATION |
| Model No. : | LG-LCS-19D300Y-V1 |
| Dight Height and Color : | 12''300mm in Single Amber Color |
| Display Dimension : | Large One : 4ft x 6.9ft ( 1200mm * 2100mm * 100mm ) |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 250m |
| Application : | Cricket Game |
| Frame Color : | Black / Red / Green / Blue / White / Grey / Others |
| Printed Letters | Sticker in White Color / Others Color |
| FOB Port : | Shanghai |
| H.S Code : | 8531200000 |
| Frame Material : | Iron / Steel |
Features
1. Linger devote to design the different sports of customized scoreboard, any kind of digit height and digit color is made for different scoreboard.
2. Scoreboard controller type can be with cable or wireless type.
3. The brightness is enough for outside in day and night.
4. Scoreboard with Iron waterproof cabinet and prevent the impact.
5. The front face is acrylic glass board to protect digits and the acrylic glass board is UV Protection type.
Descripition of the Cricket Scoreboard
Function : Display Score
Specification :
1) Use of the environment: Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm for main scoreboard / 4'' 100mm for Mini Scoreboard
4) Display Color : Amber Color (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Bottom Line is Moving Message Sign in Amber Color
Overall Structure :
1) Display usage:
Totally 19 pieces digits ,12 inch height character - Large Scoreboard
Totally 6 pieces digits , 4 inch height character - Mini Scoreboard
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ; 0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
5) Large Scoreboard and Mini One work with same controller .
6) Mini Scoreboard no buttons to control and Display number directly from Main Scoreboard
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension :
1170mm x 1770mm x 150mm (Carton)
450mm x 520mm x 130mm ( Carton )
Screen Dimension : 4' x 6.9' x 4'' / 16'' * 18'' * 4''

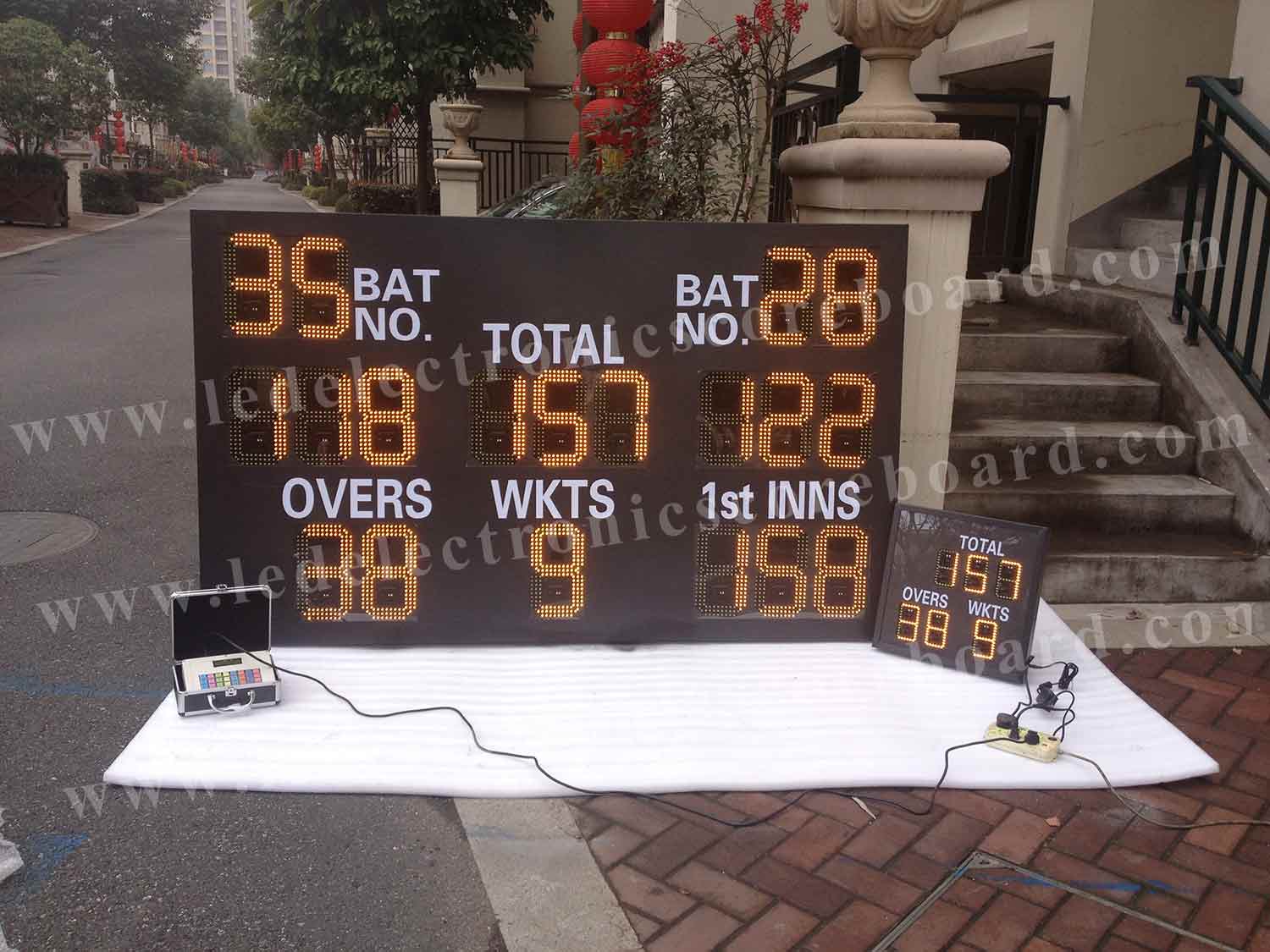

Function
BAT No. 1 : 1digit to display number from 0 - 9
BAT No. 2 : 1digit to display number from 0 - 9
RUNS 1 : 3digits to display number from 000 - 999
RUNS 2 : 3digits to display number from 000 - 999
TOTAL : 3digits to display number from 000 - 999
OVERS : 2digits to display number from 00 - 99
WKTS : 1digit to display number from 0 - 9
1st INNS : 3digits to display number from 000 - 999
Sticker in white Color on the Scoreboard can be any Letters.
Function Option : Brightness Adjust / Clear Score
Any Special Function is Welcome !
Q1: What should I do if my Scoreboard is not working properly?
Check the Input Power is with right Volatge. Some countries use 110V and Some Countried use 220V.
If the controller box is without Battery. That must be a power cable to connect to 110V / 220V plug.
Any other problem can contact with us and take photos for us to check .
Q2: What is the correct way to store the scoreboard ?
1. Keep out of the reach of children under 8 years.
2. Do not store in dampness and high temperature places.
3. Avoid direct sunlight.
Q3 : What about the maintaince for the scoreboard ?
2 Years Warranty .
Under the condition of not artificial damage, we will send you the new parts to replace.
Product Design Principles
We always looking the trend of market and technology, develop the new product with innovation and
special feature. Strong OEM ability and strictest QC system can make sure the mass production quality
and delivery time.
We are a professional Led Scoreboard manufacturer in China. With many years of experience since
2002 in producing Led Scoreboard products. Our company has complete quality management systems
and professional production equipment. We can design more than 100 styles by ourselves per year and
also we can arrange production according to customers' ideas and samples.
